EYES LIKE A LYNX
It is fast, silent and its eyes are six times more sensitive to light than those of a human. This allows it to see its prey not only at dusk, but also to recognize it at long distances in complete darkness: The Lynx.

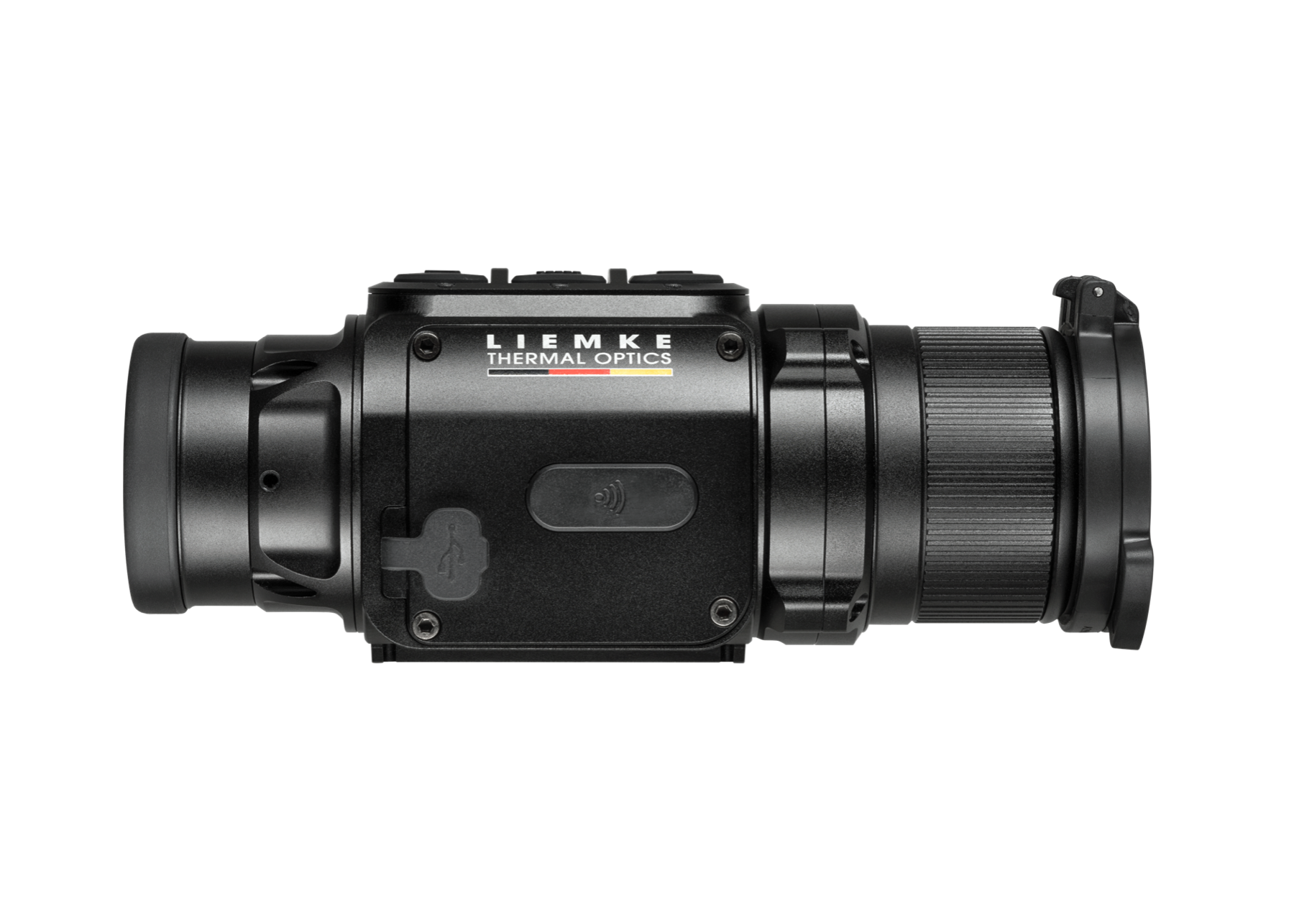

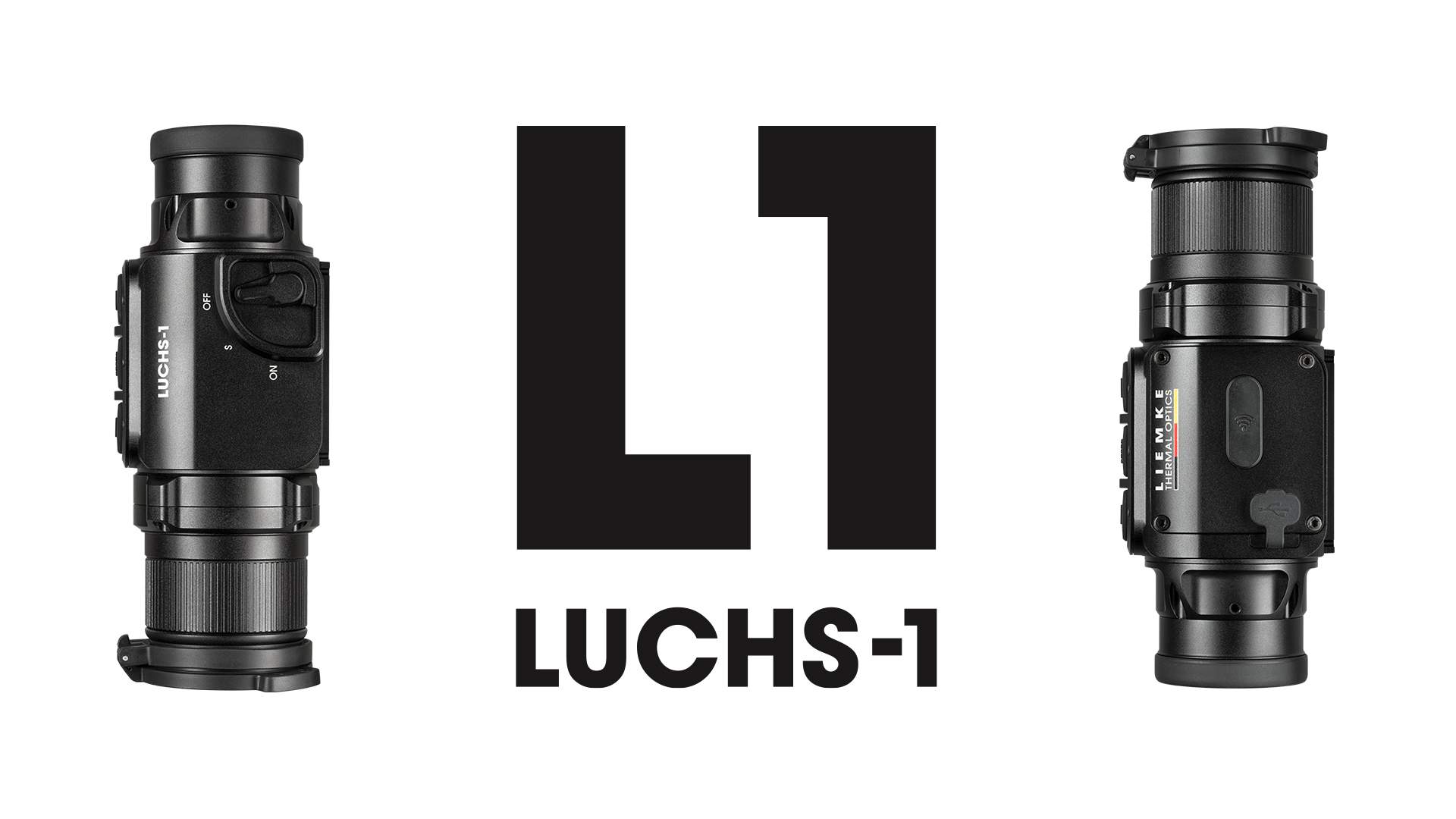

For the latest LIEMKE front attachment optics, we have taken advantage of exactly these characteristics. Experience the darkness through the eyes of the nocturnal hunter - with the LIEMKE LUCHS-1.

3.950,- €

ADVANTAGESLUCHS-1
POWERFUL
- 640x512 12μm VOx Sensor for high contrast and detailed image
- Large field of view of 22 m / 100 m
- Range of 1.750 m
- Steadfast due to built-in rechargeable battery with up to 9 hours duration
- 32 GB internal memory
- Absolutely repeatable due to precisely tuned collimator
FAST AND QUIET
- Ready for action at any time – startup time of only 5 seconds
- Whisper quiet calibration procedure
TOUGH
- Robust and shock-resistant aluminum housing – tested according to the requirements for premium riflescopes
- Water and dust protected in accordance with IP67
ADAPTABLE
- Suitable for forest or field hunting -
- Suitable for use with universal and driven hunt riflescopes
- Individual operating concept
INTUITIVE
- Visible and tactile switch, intuitive operation when aiming

THERMAL IMAGING.
MADE IN GERMANY.



Ideal in combination with daylight optics.

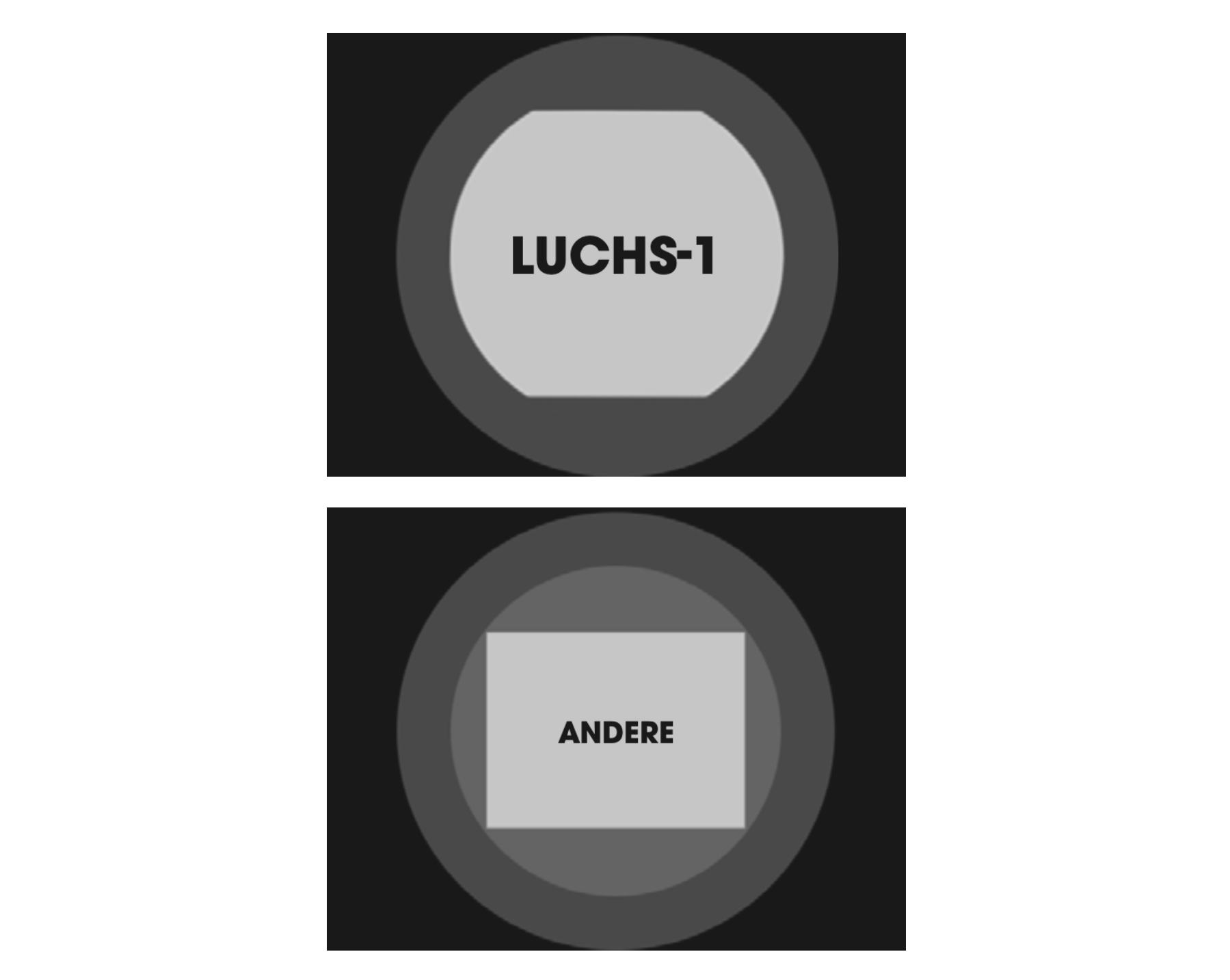

LARGE FIELD OF VIEW
The extremely generous field of view of 22m/100m completely fills the image within the riflescope already at 2x magnification.

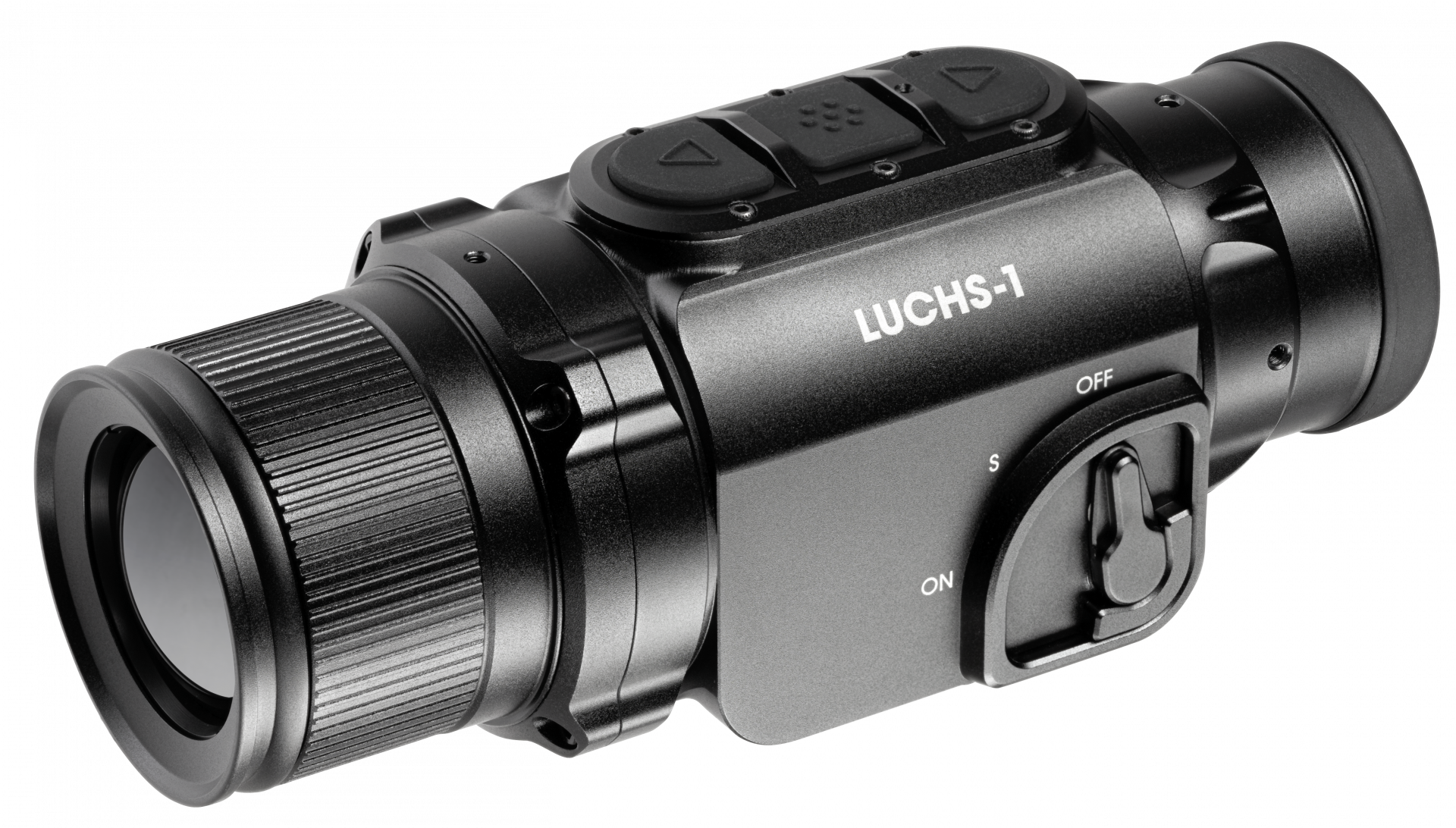

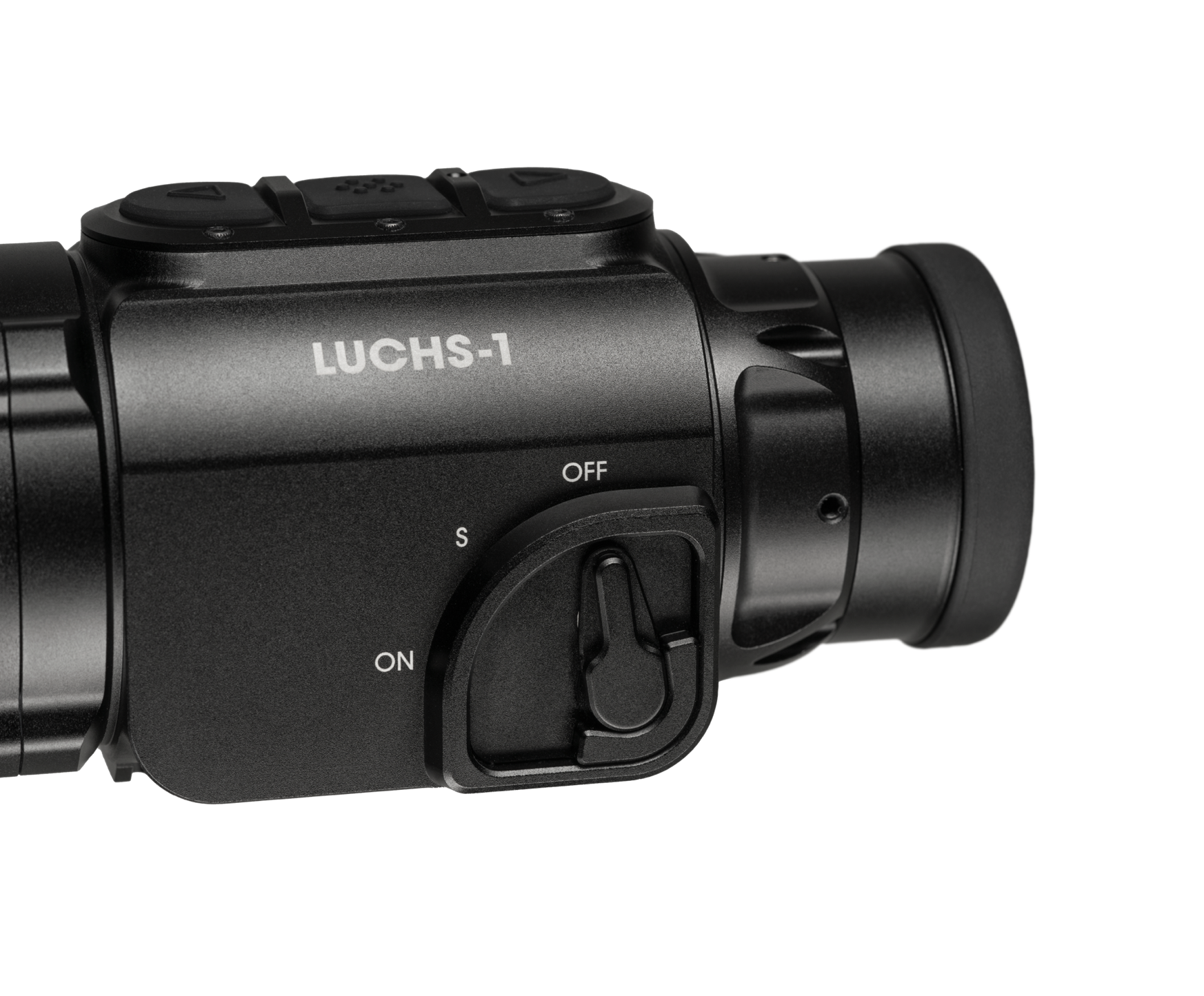

THREE-POSITION SWITCH
ON/Standby/OFF

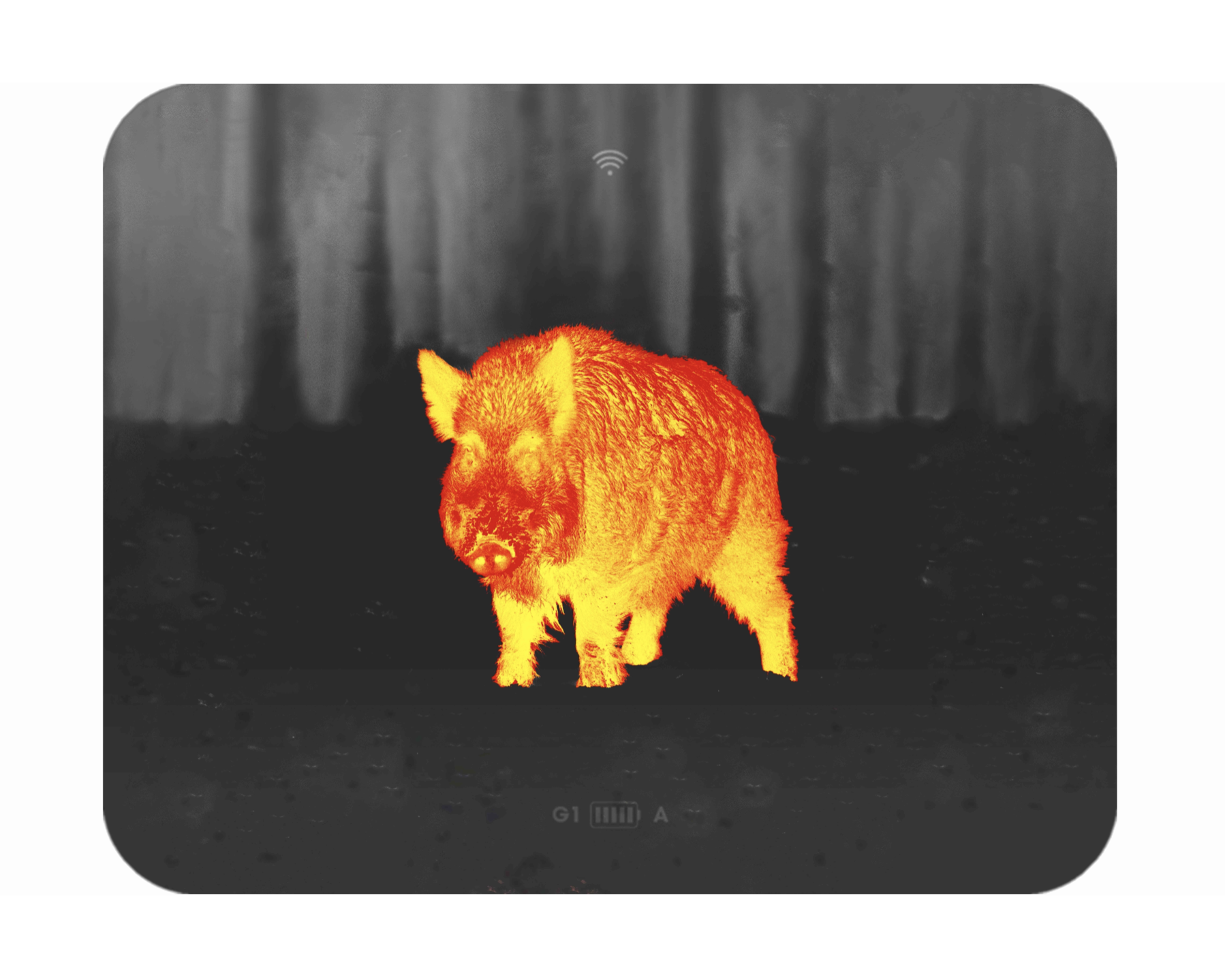

BRILLIANT IMAGE
Two image modes for optimal detail rendition in varying weather conditions and 5 color modes, including an Extra Dark mode setting for a glare-free image at night.

CONNECTIVITY
Equipped with WIFI function for live streaming, photo and video recording via app and USB-C port

TECHNICAL DATA
LUCHS-1 | |||
Sensor | 640×512 12μm VOx | ||
Objective lens | 35 mm / f1.0 | ||
Field of view | 22 x 17.6 m / 100 m | ||
Detection range | 1.750 m | ||
Optical magnification | 1x (2x direct zoom available) | ||
Frequency | 50 Hz | ||
NETD | 50mK | ||
Display | 1024×768 OLED color display | ||
Battery | integrated, up to 9 hours operation | ||
External power supply | USB-C | ||
Wireless connection/memory | WiFi / 32GB interneral memory | ||
Connection thread | M43 x 0.75 | ||
Waterproof | IP67 | ||
Operational temperature | -20°C to 50°C | ||
Dimensions | 161 x 64 x 65mm | ||
Weight | 580g | ||
