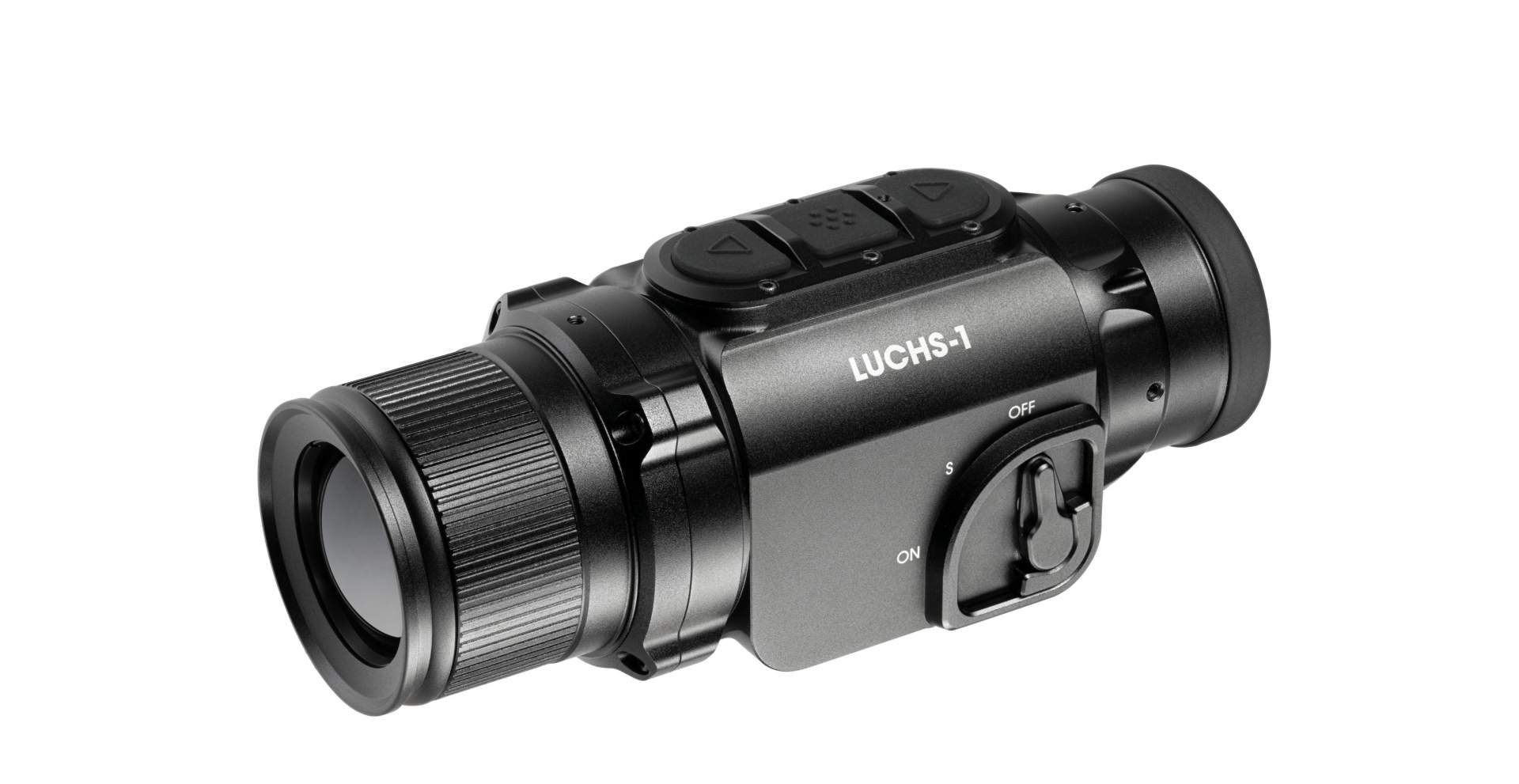

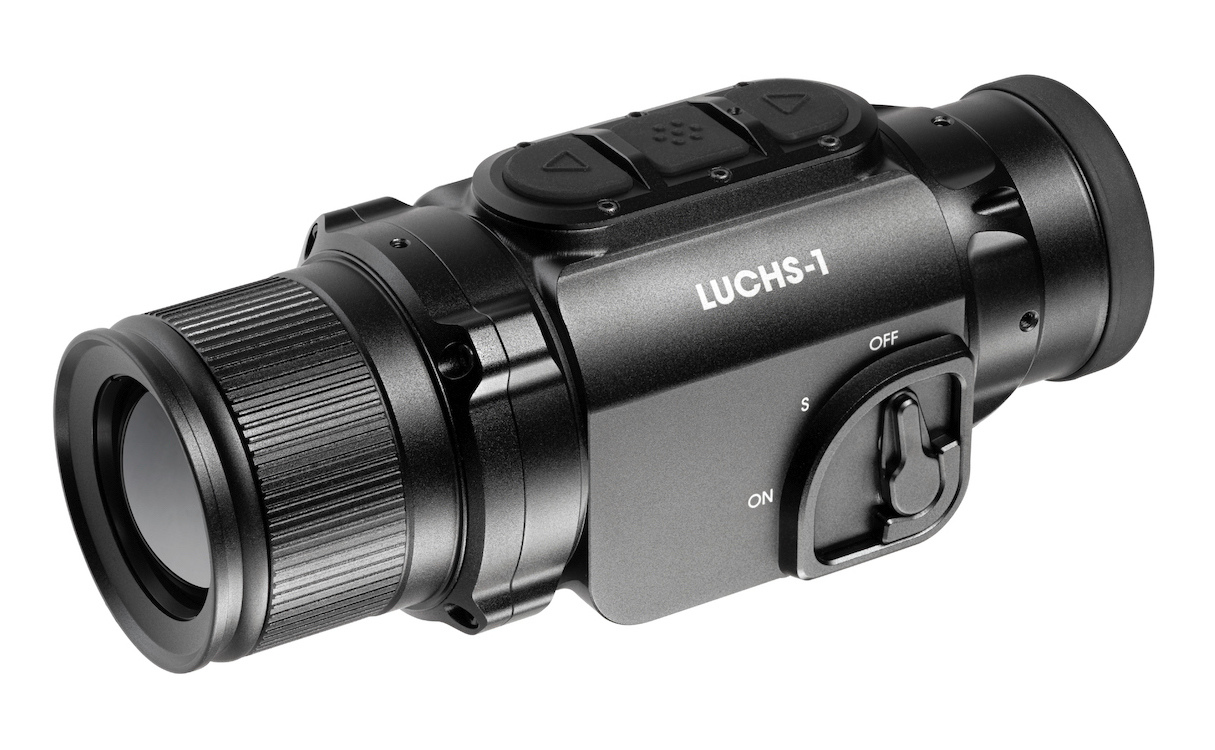

LIEMKE LUCHS-1

The all-rounder for field and forest hunting on mixed terrain.

DKK 32,995.00

Prices incl. VAT plus shipping costs Learn more

Ready for immediate dispatch

Größe
Version
Loading...

Free shipping from 500 kr.
Official shop
First hand customer support

A GOOD VIEW
AT NIGHT!

FIELD OF VIEW AND RANGE
LUCHS-1  /  LUCHS-2 /  LUCHS-25.1

Banner_Wärmebild_30x30

SUPERIOR IMAGE QUALITY

The five color modes allow you to use the devices in all conditions, according to your individual preferences. The two image modes “Sun” and “Rain” use contrast balancing to ensure optimum detail rendering in different weather conditions, providing orientation on any terrain.


FAST & INTUITIVE OPERATION

The LIEMKE LUCHS family features flexible operation with 3 modes:


Standard: preset

Basic: limited to essential functions

Individual: Configurable for the technically interested user

Memory slots are available for adapting settings to three different optics.

THREE-POSITION SWITCH

With a start-up time of only 5 seconds, the device is ready to use immediately. The easily visible and tactile switch ensures fast and intuitive operation – directly on the mounted rifle:
 OFF / Standby / ON

Banner_Präzision_30x30

FIRST-RATE REPEAT ACCURACY AND PRECISION


For a constant point of impact: All LIEMKE LUCHS clip-on devices are designed to deliver maximum precision, even under great strain and with frequent mounting/removal. With different intelligent adapter solutions, the LUCHS can be combined with any day scope with great repeat accuracy.

Flexible operating solution:

The clip-on devices from the LUCHS family feature three buttons on top of the device. They can be operated intuitively and easily, even in darkness. When the menu is activated, the Up and Down buttons can be used for navigation. When the menu is not activated, the two arrow buttons can be assigned individual functions.


LIEMKE_Erlebniswelt_Ideale_Synergie_30x30

IDEAL SYNERGY


Easy, fast, with high repeat accuracy – the models in the LUCHS family can be ideally combined with day scopes in just a few simple steps.

VERSATILE USE

Thanks to the combination of the powerful sensor with a universal 50-mm/35-mm/25-mm lens, the clip-on devices from the LUCHS family are suitable for forest and field hunting and work in perfect synergy with universal or driven-hunt riflescopes. All LUCHS models can be used as clip-on devices or as hand-held units.


LIEMKE_Erlebniswelt_Wiederstandsfähige_Konstruktion_30x30

ROBUST CONSTRUCTION


All LUCHS attachments are designed to meet the same shock resistance requirements as premium riflescopes. Even rain, dust and temperatures between -20 °C and +50 °C cannot harm the optical attachments.

A GOOD VIEW AT NIGHT!

Lynx (German: Luchs) are fast, silent and have eyes that are six times as light sensitive as those of a human. This allows them to see their prey not only at dusk or dawn, but even over long distances in complete darkness.

These are exactly the properties that we used for the latest LIEMKE clip-on optics. Experience the darkness through the eyes of the nocturnal hunter – with the LIEMKE LUCHS family.

With the unique combination of a large field of view and a long range with unrivaled image quality, the LIEMKE LUCHS thermal imaging family are premium products that are second to none.

With their compact design, long battery life and intuitive operation, LUCHS clip-on optics set new quality standards in practical use. Whether LUCHS-1 or LUCHS-2 – all members of the LUCHS family are developed and manufactured in Germany.

POWERFUL COMBINATION

Thanks to their combination of field of view and range, the devices in the LUCHS family qualify for different areas of application: The LUCHS-1, for example, impresses with its unique and extremely powerful combination of a generous field of view of 22 meters at 100 meters and a range of 1,750 meters. As a result, the image of the riflescope is completely filled in width even at low magnification.

More overview: Compared to the attachments of other manufacturers, the LUCHS-1 fills the image of the riflescope even at low, approx. 2x initial magnification fully utilized.

MULTIMEDIA CONNECTIVITY

With a USB-C port and WiFi functionality for live streaming, photos and video recording via app. A 32-GB internal memory additionally allows you to record your hunting experience.

DISCOVER THE LIEMKE APP!


Transfer the thermal image from your LIEMKE device* to your smartphone or tablet in real time! Then use it to generate photo and video recordings – direct, easy, convenient. Digitize your hunting experiences now with the LIEMKE app.

*Compatible with KEILER-1, KEILER-2, KEILER-25.1, LUCHS-1, LUCHS -2, LUCHS-25.1 and MERLIN-35 and other Wifi-capable KEILER handheld devices.
App-Download:

Details:


  • Modell

    LUCHS-2

    LUCHS-1

    LUCHS-25.1

    Detektor und Objektiv

    Lense

    50mm / f 1.0

    35mm / f 1.0

    25mm / f 1.0

    Field of view

    15,4x12,3 m /100 m

    22x17,6 m /100 m

    18,5x13,9 m /100 m

    Sensor (resolution and type)

    640x512 VOx Mikrobolometer uncooled

    640x512 VOx Mikrobolometer uncooled

    384x288 VOx Mikrobolometer uncooled

    Pixel Pitch

    12 μm

    12 μm

    12 μm

    PFOV

    0,24 mrad

    0,34 mrad

    0,48 mrad

    Refresh rate

    50 Hz

    50 Hz

    50 Hz

    NETD

    50 mK

    50 mK

    40 mK

    Optical magnification

    1x (2x direct zoom available)

    1x (2x direct zoom available)

    1x (2x direct zoom available)

    Detection range

    2.500 m

    1.750 m

    1.250 m

    Display

    1.024x768 OLED color display

    1.024x768 OLED color display

    1.024x768 OLED color display

    Function and media




    Wireless connection /memory

    WiFi / 32 GB internal memory

    WiFi / 32 GB internal memory

    WiFi / 32 GB internal memory

    Battery

    integrated up to 9 hours battery life

    integrated up to 9 hours battery life

    integrated up to 10 hours battery lifet

    External power supply

    USB-C

    USB-C

    USB-C

    Physical and environmental characteristics




    Size

    171x64x65 mm

    161x64x65 mm

    156x64x65 mm

    Weight

    625 g

    580 g

    580 g

    Waterproof rating

    IP67

    IP67

    IP67

    Usage temperature

    -20°C up to +50°C

    -20°C up to +50°C

    -20°C up to +50°C

    Connecting thread

    M43x0.75

    M43x0.75

    M43x0.75


  • SCOPE OF DELIVERY LUCHS-FAMILY

    • LUCHS clip-on thermal imaging camera
    • Lens cap (mounted)
    • Thread protector with rubberized eyecup (mounted)
    • USB-C cable
    • Power supply unit with USB-C connection and 4 plug adapters
    • Europe (Type C)
    • UK (Type G)
    • US (Type A)
    • OFF (Type I)
    • Thread adapter M43x0.75 to M52x0.75 with locking ring
    • Hook spanner for thread adapter
    • Optics cleaning cloth
    • Operating instructions
